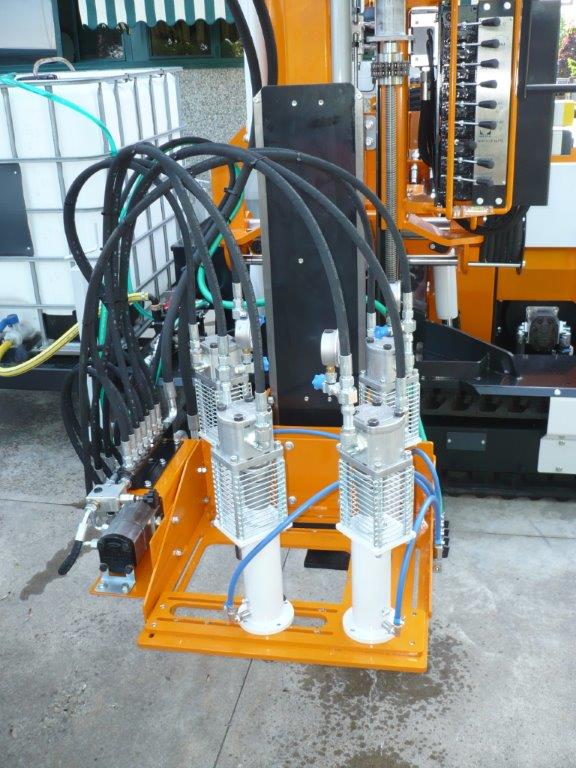

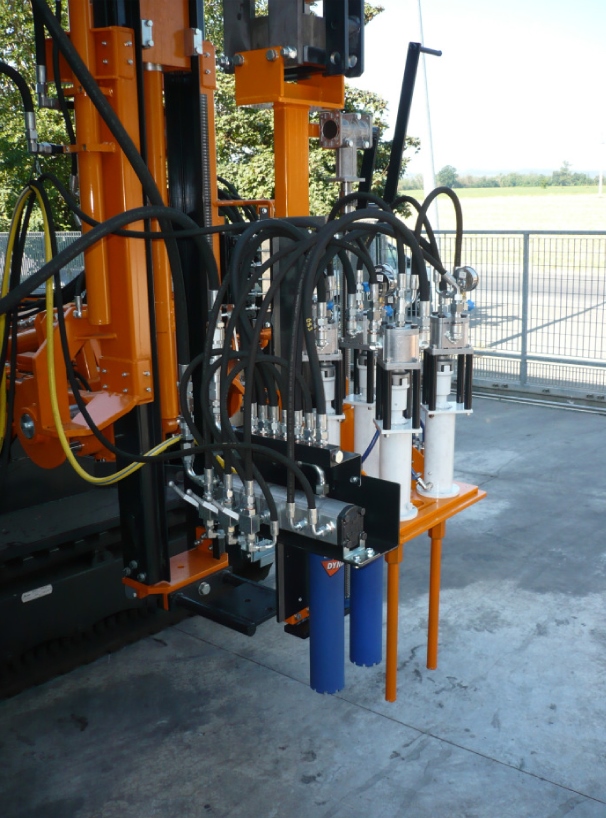

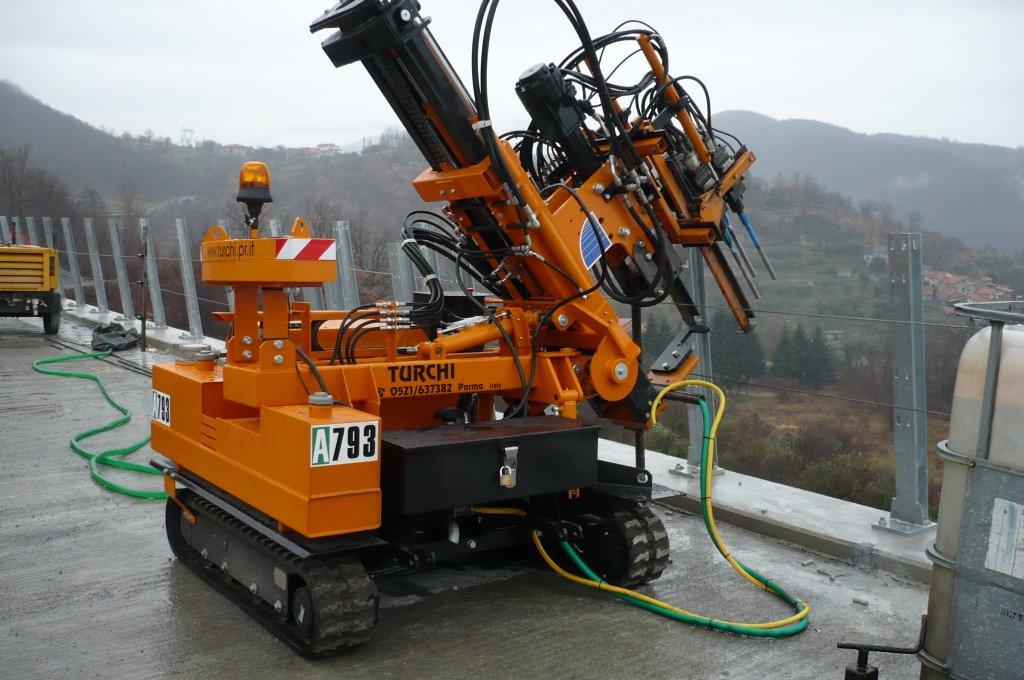

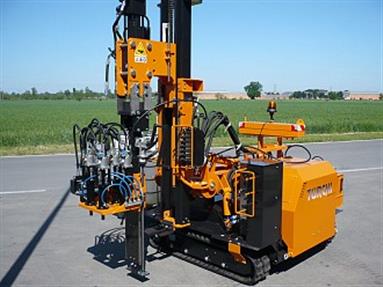

With the Turchi 4 core drill you can quickly and effectively install barrier posts onto concrete bridges and roadways. This drill can be adjusted to suit most applications, drilling with one through to four drills to drill the perfect drilling pattern to suit your posts. Perfect for those over structure posts that can be highly time consuming when all individually drilled and measured out.
|
|
Metric |
Imperial |
|
Coring diameter |
22mm to 45mm |
.866-7/8” to 1.77-1 25/32” |
|
Maximum number of cores |
4 |
4 |
|
Speed |
1850 RPM |
|
|
Centre distance |
||
|
Hydraulic Flow |
For Single engine 151 l/min |
.529 CFMin / 3.96g/min |
|
Hydraulic Pressure |
140 Bar for single engine |
1,960Psi |
|
Oil Flow |
For Single engine 151 l/min |
.529 CFMin / 3.96g/min |
|
Water Flow |
30 l/min |
|
|
Dimensions |
1,600 x 750 x 680 mm |
62” x 30” x 27” |
|
Weight |
200 kg |
440 lb |
